Skeleton Operations

Euler order conversion

# Change all joints at once
bvh_xyz = bvh.change_euler_order("XYZ")

# Change a single joint only
bvh_single = bvh.change_euler_order("XYZ", joint="Hips")

Skeleton scaling

bvh_scaled = bvh.scale(0.01)   # uniform — scales offsets AND root translation

Retargeting

reference = pybvh.read_bvh_file("reference_skeleton.bvh")
bvh_retarget = bvh.retarget(reference)

# With name mapping (when joint names differ)
bvh_retarget = bvh.retarget(reference, name_mapping={
    "Hips": "pelvis", "Spine": "spine_01"
})

Joint extraction

upper = bvh.extract_joints(["Hips", "Spine", "Neck", "Head"])

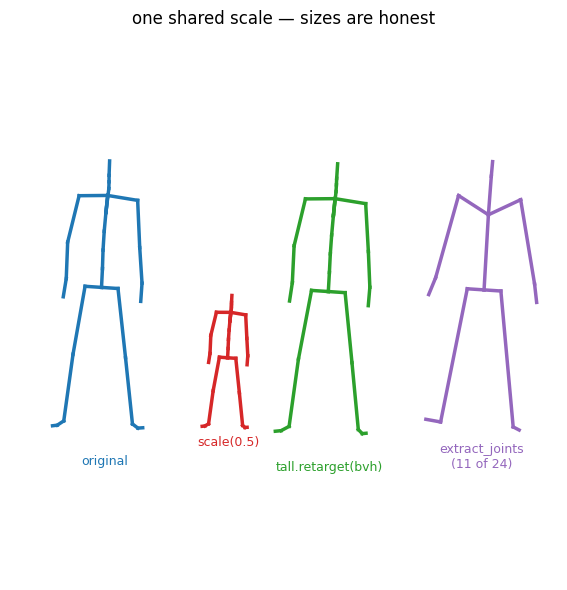

The three skeleton operations on one shared scale — scaled to half, retargeted back to the original proportions, and reduced to 11 joints:

Four skeleton variants drawn at one shared scale: original, half-size scale, a tall clip retargeted to the original proportions, and an 11-joint extraction

Frame operations

clip = bvh[10:50]              # frame slicing (steps work too: bvh[::2])
combined = bvh + other_bvh     # concatenation (same skeleton and rate required)
bvh_30fps = bvh.resample(30)

Pandas integration

to_df_dict() exports the motion as labeled columns. to_node_table() exports the skeleton as a node table: one plain dict per node, in nodes order, with the parent given as an index. Together they carry everything needed to rebuild the Bvh with Bvh.from_df(table, df). from_df also takes bvh.nodes in place of the table. The module-level pybvh.df_to_bvh is the same function:

import pandas as pd
from pybvh import Bvh

df = pd.DataFrame(bvh.to_df_dict(mode="euler"))
table = bvh.to_node_table()   # [{name, parent, offset, rot_channels, ...}, ...]

bvh_from_table = Bvh.from_df(table, df)
bvh_from_nodes = Bvh.from_df(bvh.nodes, df)

The skeleton comes back exactly. The table identifies nodes by position, not by name. So a joint with two end sites, and joints that share a name, come back as they were, with their names, offsets and channel orders.

The motion comes back within float precision. The reason is that the _rot columns carry degrees, and from_df converts them back to radians. from_df derives the frame time from the time column. The Notes of df_to_bvh's docstring give both rules.

In the columns, a repeated node name gets the label that pandas gives repeated CSV headers. The first keeps its name, and later ones get .1, .2 (Arm_Z_rot, Arm.1_Z_rot). The suffix is a column label only: the nodes keep their names. from_df binds the columns by label. So the columns may come in any order, and from_df ignores columns outside the expected set.

to_df_dict(mode="coordinates") is one-way. Positions do not determine joint angles. from_df reads euler-mode frames only.

A skeleton built by hand takes the same route. nodes_from_table builds the node list from a table. nodes_to_table writes one back.

The two forms follow the rule of Bvh(...) and copy(nodes=...). A table is data, so from_df builds the clip's own nodes from it. The clip takes over a node list: it holds those node objects and freezes them. So bvh_from_nodes above shares bvh's nodes. And a node that you built and passed in raises AttributeError when you edit it afterwards. If you mean to keep editing the nodes, pass nodes_to_table(nodes) instead.

Editing a skeleton

The nodes that a Bvh holds are frozen. An assignment to a node's name, offset, parent, children or channels raises AttributeError. node.offset is a read-only array. The clip computes its forward kinematics, its rest pose and its name indexes from the skeleton. So a node edited in place would leave them describing the old one.

bvh.nodes is a tuple. node.children is a tuple once the clip owns the node. Channel orders are tuples (('Z', 'Y', 'X')). Where you need a list, take list(...). For a writable offset, take node.offset.copy().

To change a skeleton, edit it as a node table and copy the clip onto it:

table = bvh.to_node_table()    # plain dicts, one per node, in `nodes` order
i = bvh.node_index["Spine"]
table[i]["offset"] = table[i]["offset"] * 1.1
table[i]["name"] = "Spine0"

edited = bvh.copy(nodes=table)

The table holds copies, so editing it leaves bvh as it was. copy(nodes=...) also takes a node list, such as another clip's nodes or one built with nodes_from_table. It takes the list over as Bvh(...) does. The copy owns those nodes and freezes them. So a later edit to one of them raises, instead of missing the clip. Nodes that another clip owns are shared, because they are frozen already. A copy that raises leaves the list editable. A table is data, so it gives the copy nodes of its own. The copy carries the motion, the frame time, the source path and your settings, as copy() does.

The motion is matched to the joints by position. So keep both of these:

  • One row per joint of joint_angles, in the same order.
  • Each joint's Euler order.

A different joint count raises ValueError. So does a changed order, because the angles are only meaningful in the order they were recorded in. change_euler_order converts them with the order. To keep a subset of the joints, use extract_joints, which drops their columns too. An L/R mapping that you set follows its joints by position. So a renamed joint keeps its pair under the new name. Pairs detected from the names are detected again from the new names.

World up is inherited, set or guessed, as by every clip pybvh derives, because new offsets do not change which way is up. edited.world_up = edited.world_up_inferred guesses it from the new skeleton.

To build a clip from a skeleton and motion that do not come from one clip, pass them to the constructor: Bvh(nodes=nodes_from_table(table), root_pos=..., joint_angles=..., frame_time=...). Such a clip is built like a clip read from a file. It guesses its own world up. It detects its L/R pairs from the joint names. To set them, pass world_up= or lr_mapping=.

Nodes not yet handed to a Bvh stay editable. So a skeleton built by hand (nodes created, parent, children and offset set) works as before, as long as it is finished before it reaches Bvh(...).

Inplace convention

All mutation methods default to inplace=False (return a new Bvh):

bvh2 = bvh.scale(0.01)                     # new object
bvh.scale(0.01, inplace=True)              # modifies self, returns None

A skeleton edit made in place (scale, mirror, retarget, change_euler_order, the reorientations) swaps a new skeleton into the clip. A node, or bvh.nodes, taken before the call keeps the old values. So read bvh.nodes again after the call.
